Main Specifications:
- Origin: Mainland China
- Charger Type: Portable Charger
- Plug Type: Type 2
- Placement on Vehicle: FRONT
- Material Type: TPE
- Cord Length: 6-10m
- Item Length: 56
- Item Width: 12
- Input Current: 24-32A
- Item Height: 12
- AC Power Supply: single phase
- Voltage: 110-220V
- Item Weight: 3.5KG
- Brand Name: EVMATE
- Origin: CN(Origin)
- Interchange Part Number: Type 1 Plug/Type 2 Plug
- Material Type: TPE
- Manufacturer Part Number: SAE J1772/IEV 62196-2
- Special Features: EU Standard EVSE Home Charger
- Working Voltage: 110-240V AC
- Withstand Voltage: 2000V
- Working Temperature: -25C~+ 55C
- EV Charging Cable: 3×6.0mm2+2×0.5mm2
- Vibration Resistance: Meet JDQ 53.3 Requirements
- Approved: CE/TUV Certificate
|
type1/type 2 plug adjustable 32A Portable EV Charger level 2 |
|
|
Product Model |
MIDA-EVSE-PA32S |
|
Install |
Portable,Plug and Play |
|
Stardard |
IEC 62196-2 |
|
Rated Voltage |
110V/250V |
|
Rated Frequency |
50Hz/60Hz |
|

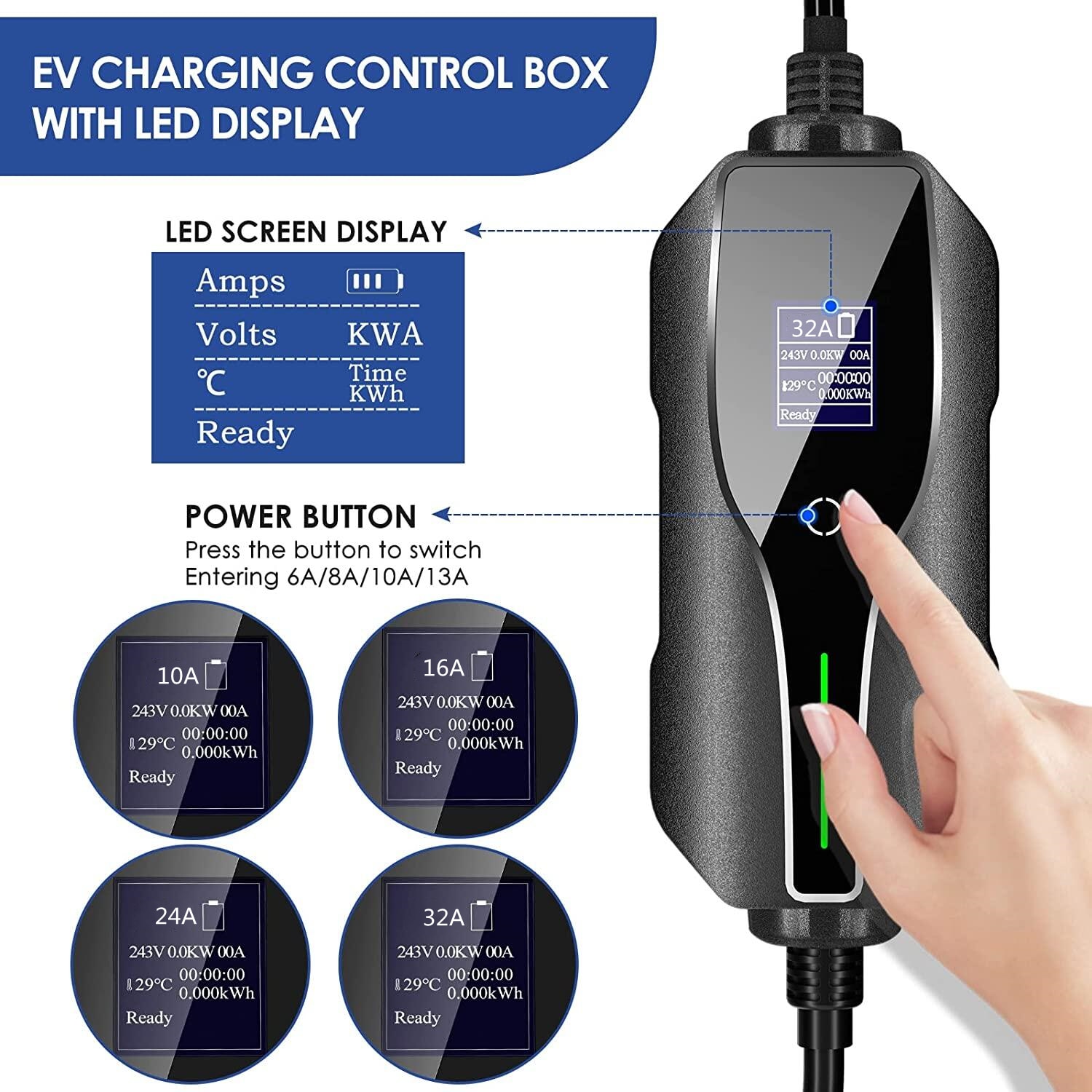

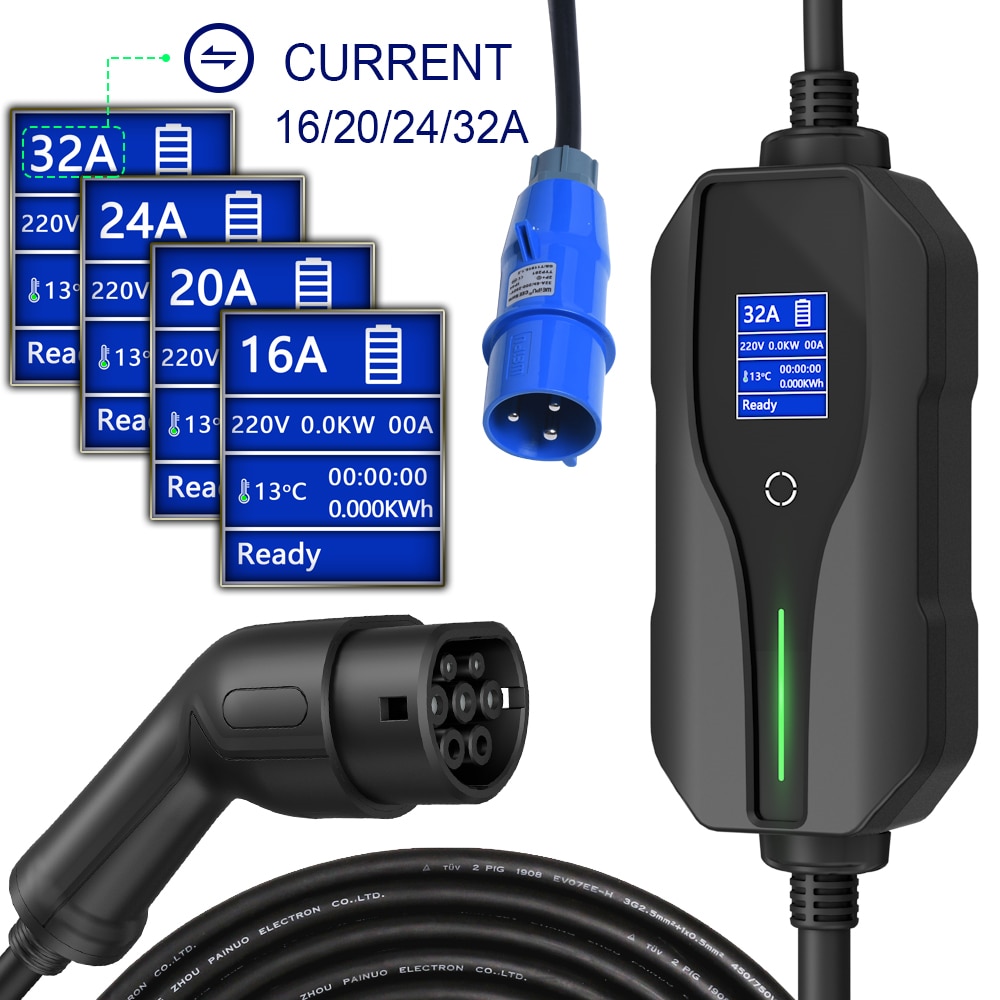

Adjustable Current |
10A,16A,20A,24,32A. |
|
Rated Power |
7.4kw |
|
Charging Cable Length |
5m or Customization |
|
Operating Temperature |
-25 ℃ to +55 ℃ |
|
Storage Temperature |
-40 ℃ to +80℃ |
|
Protection level |
IP67 |
|
Insulation resisitance |
>1000MΩ |
|
Housing Fire Rating |
UL94V-0Rated Input |
|
Protection |
1.Short circuit protection 2.Leakage current protection 6.Over temperature protection 8.Lighting protection |
Electricial Performance
2.Working Current: 3×6.0mm2+2×0.5mm2 EV Charging Cable
3.Working Voltage: 110-250V AC
4.Auto charge recovery

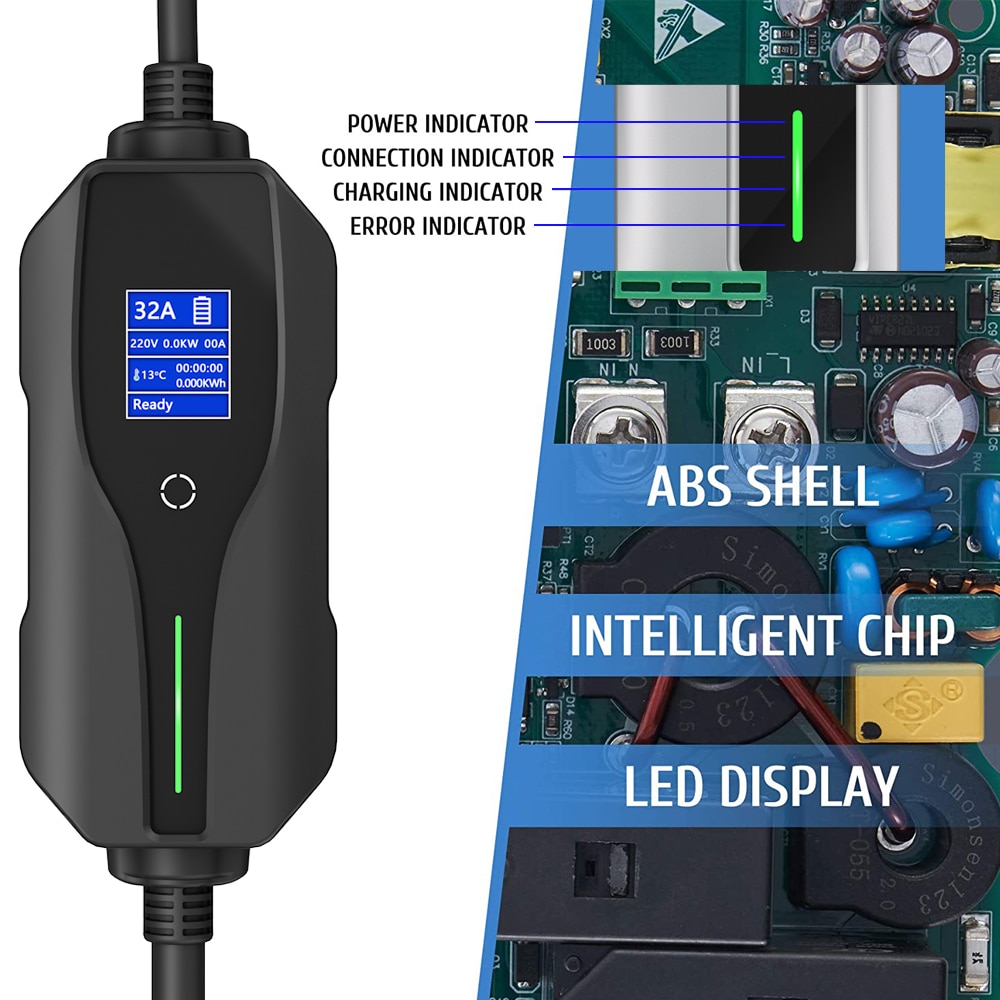

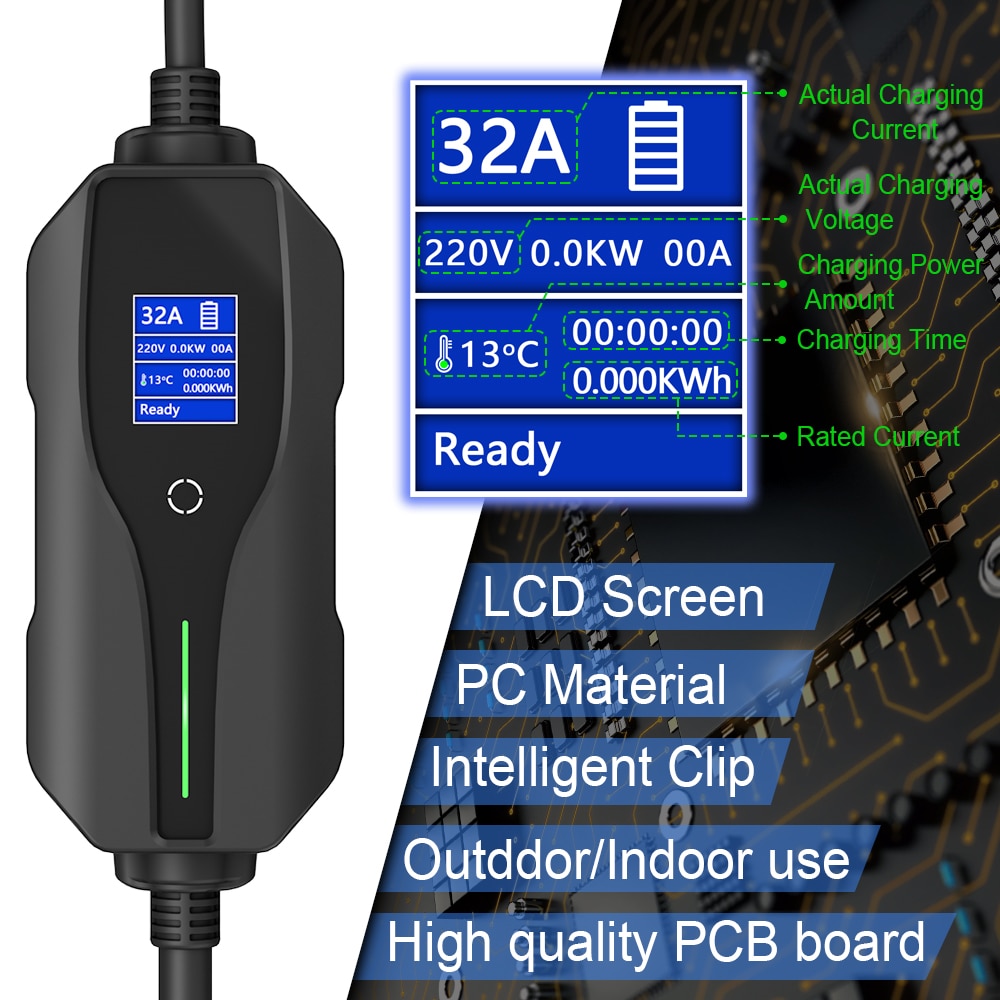

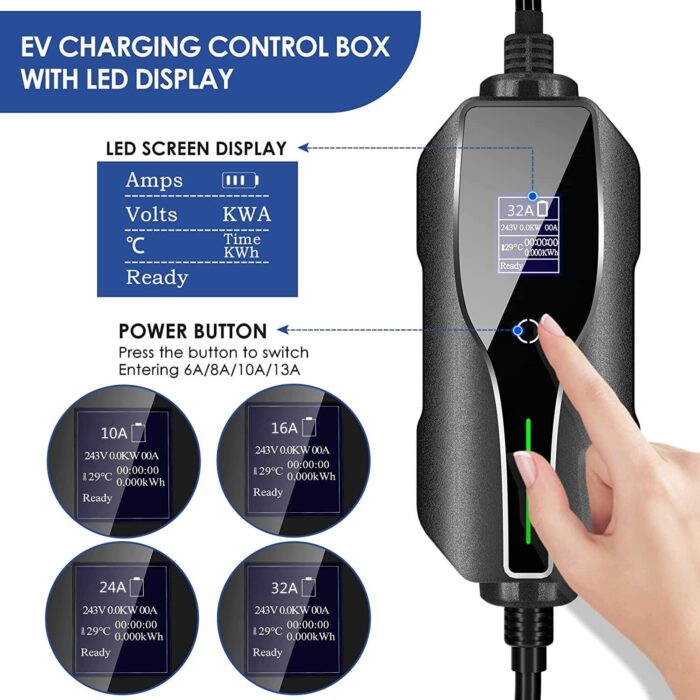

5.LED Lights for charging status

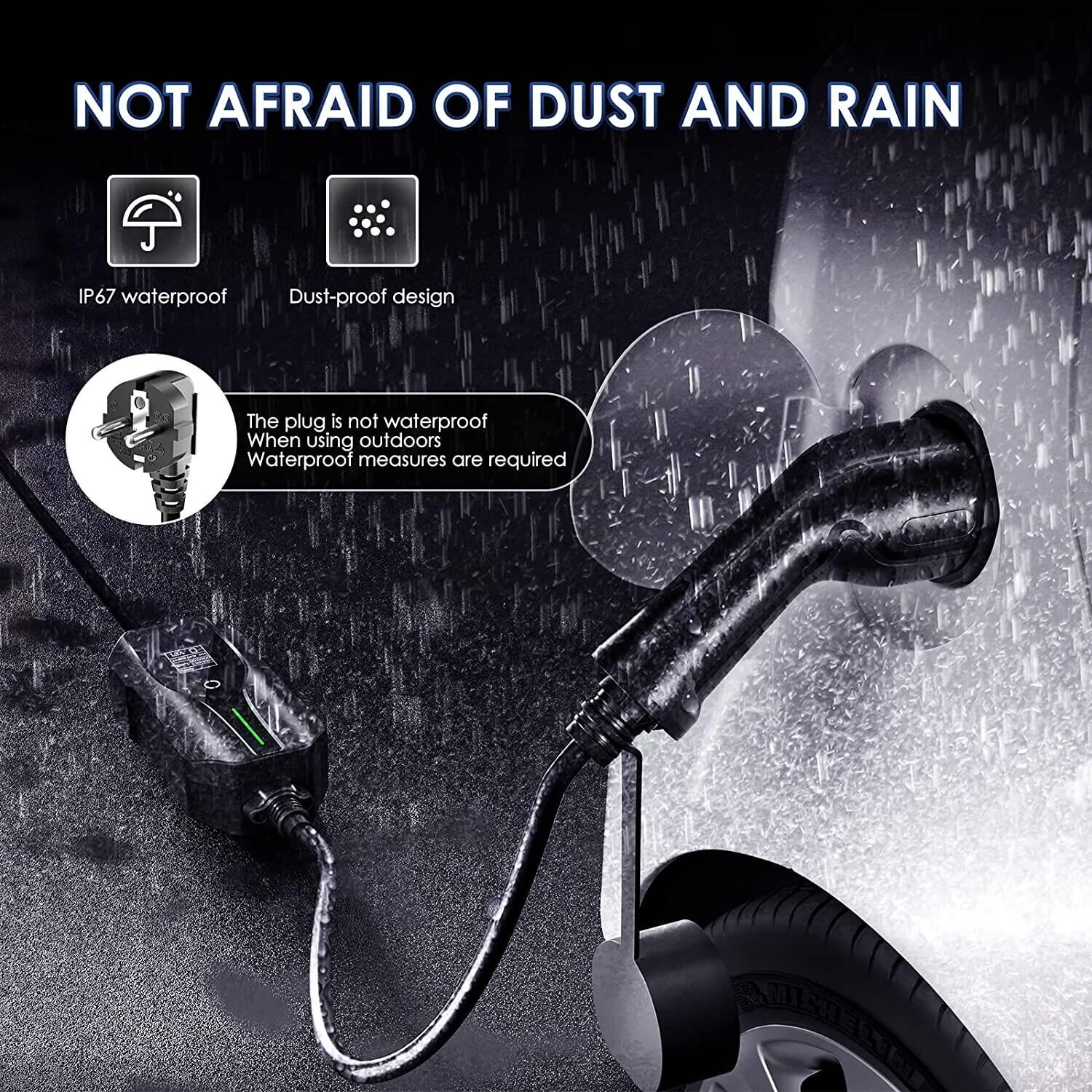

6.Waterproof: IP67
7.Operating Temperatures: -25° To +55°
8.Storage Temperature: -40° To +80°
9.Certificates: CE TUV
10.Charge from your home power point
11.Electrical approval for EU, CE TUV
12.Guaranteed to be fully compatible with ALL Type 1/Type 2 electric charging

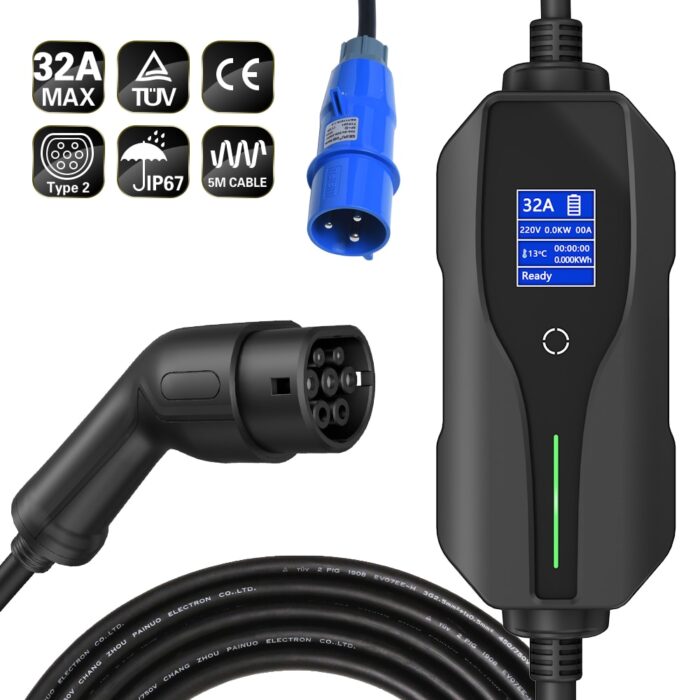

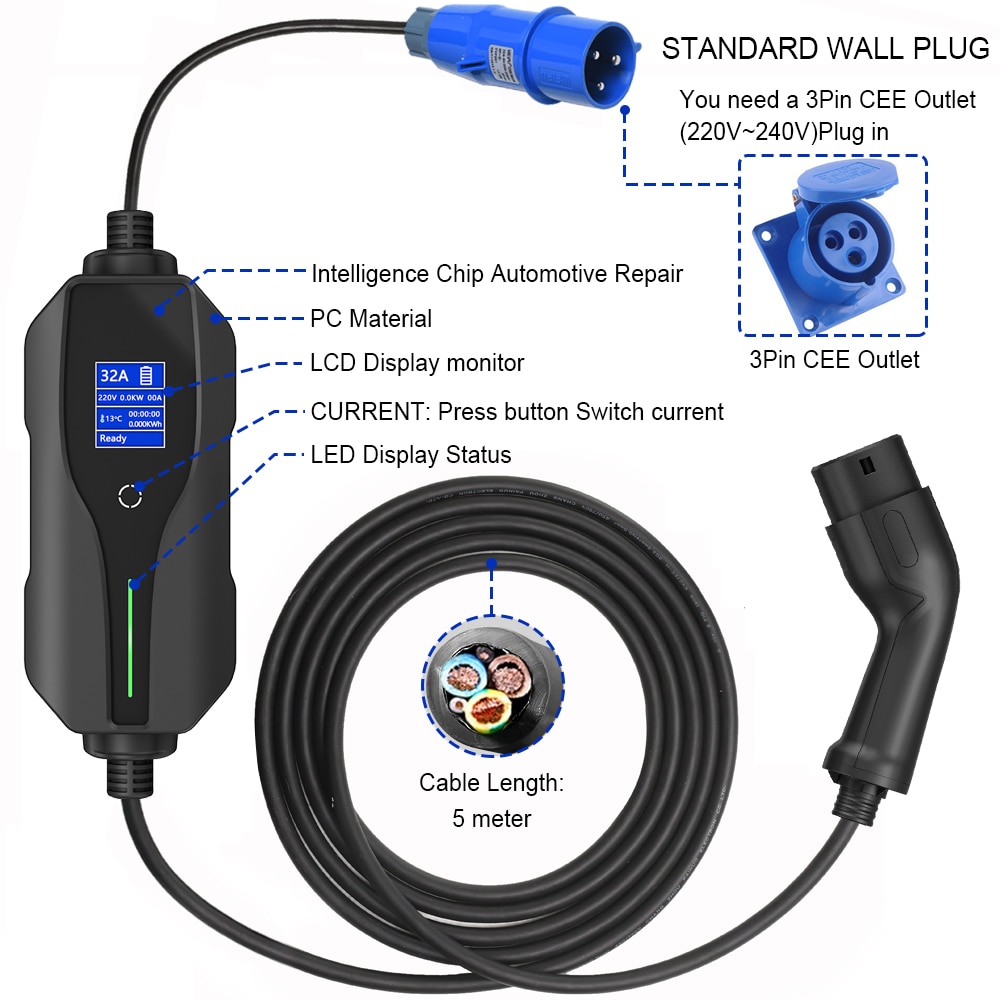

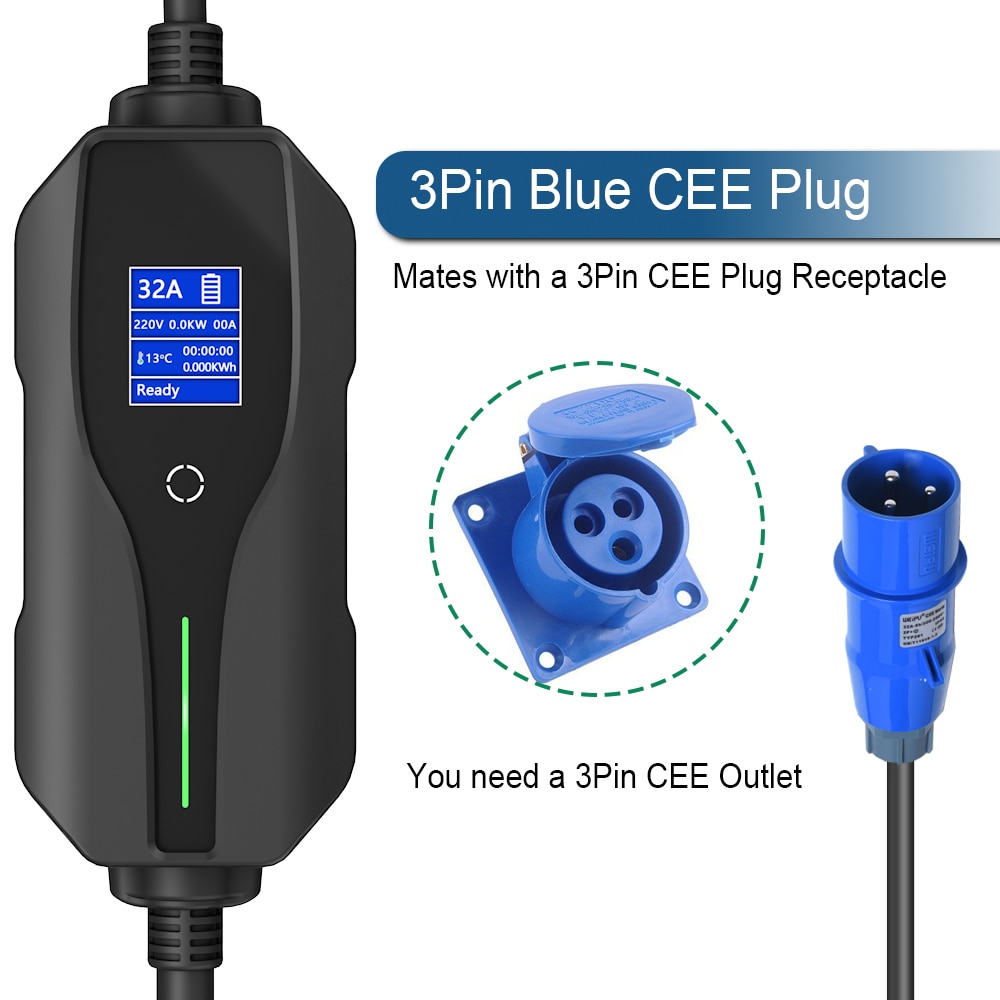

Notice:16A Adaption: EU-Schuko-Stecker.32A Adaption:Blue CEE Plug.If you need other types of plugs, please contact.

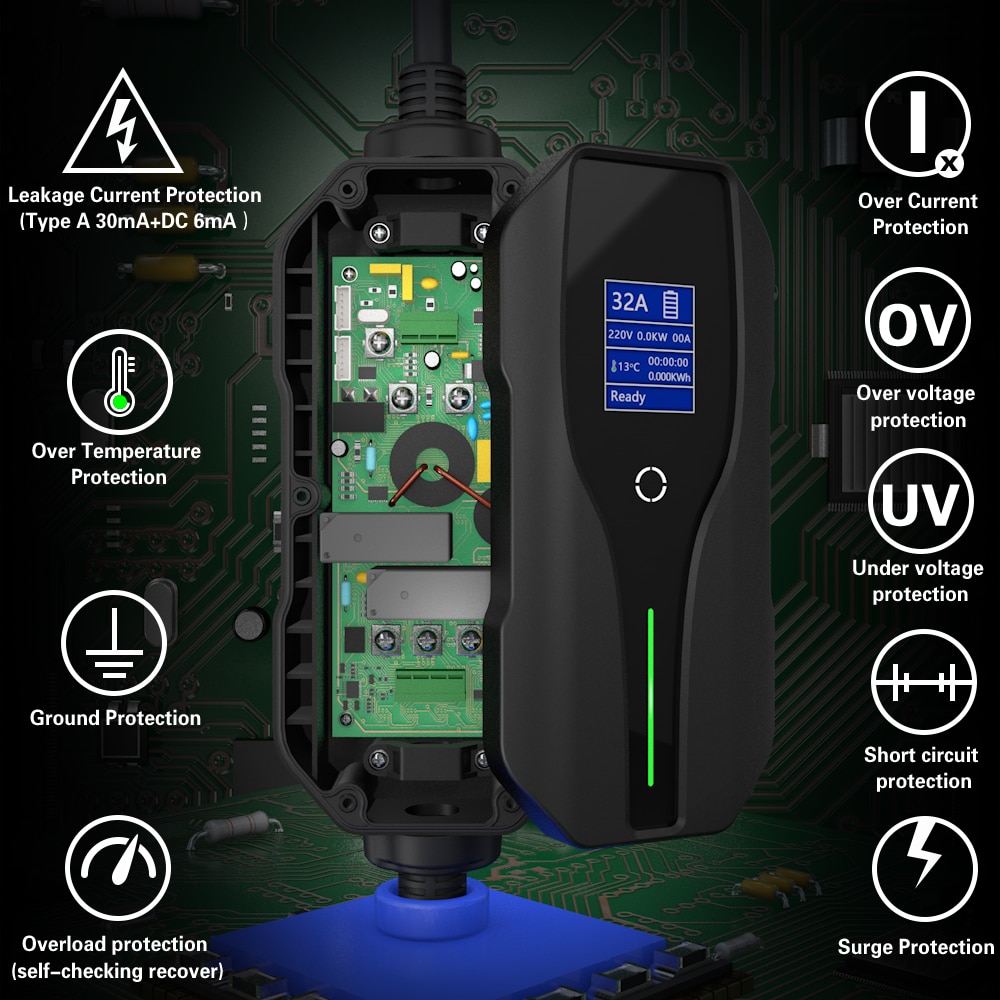

Safety protection:
1.Over and under frequency protection
2.Leakage Current Protection (restart recover）
3.Overload protection (self-checking recover)
4.Over voltage and under-voltage protection
5. Over Current Protection
6. Over Temperature Protection
7. Ground Protection and Short circuit protection
8. Lighting Protection
