Main Specifications:
- Origin: Mainland China
- Other Part Number: GB/T
- Charger Type: Portable Charger
- Placement on Vehicle: Rear
- Material Type: TPE
- Cord Length: 2-6m
- Item Length: 56
- Item Width: 32
- Input Current: 24-32A
- Item Height: 36
- AC Power Supply: single phase
- Voltage: 110-220V
- Item Weight: 3.5KG
- Interchange Part Number: GB/T plug
- Material Type: TPE
- Special Features: GBT Standard EVSE Home Charger
- Working Voltage: 110~240V AC
- Withstand Voltage: 2000V
- Working Temperature: -25C~+ 55C
- EV Charging Cable: 3×6.0mm2+2×0.5mm2
- Vibration Resistance: Meet JDQ 53.3 Requirements
- Approved: CE/TUV Certificate
PRODUCT DESCRIPTION
|
Product Model |
BG/T Protable EV charger |
|
Operating voltage |
110V~240V AC |
|
Insulation resisitance |
>1000MΩ |
|
Therminal temperature rise |
<50K |
|
Withstand voltage |
2000V |
|
Operating temperature |
-30℃~+50℃ |
|
Rated Current |
32A |
|

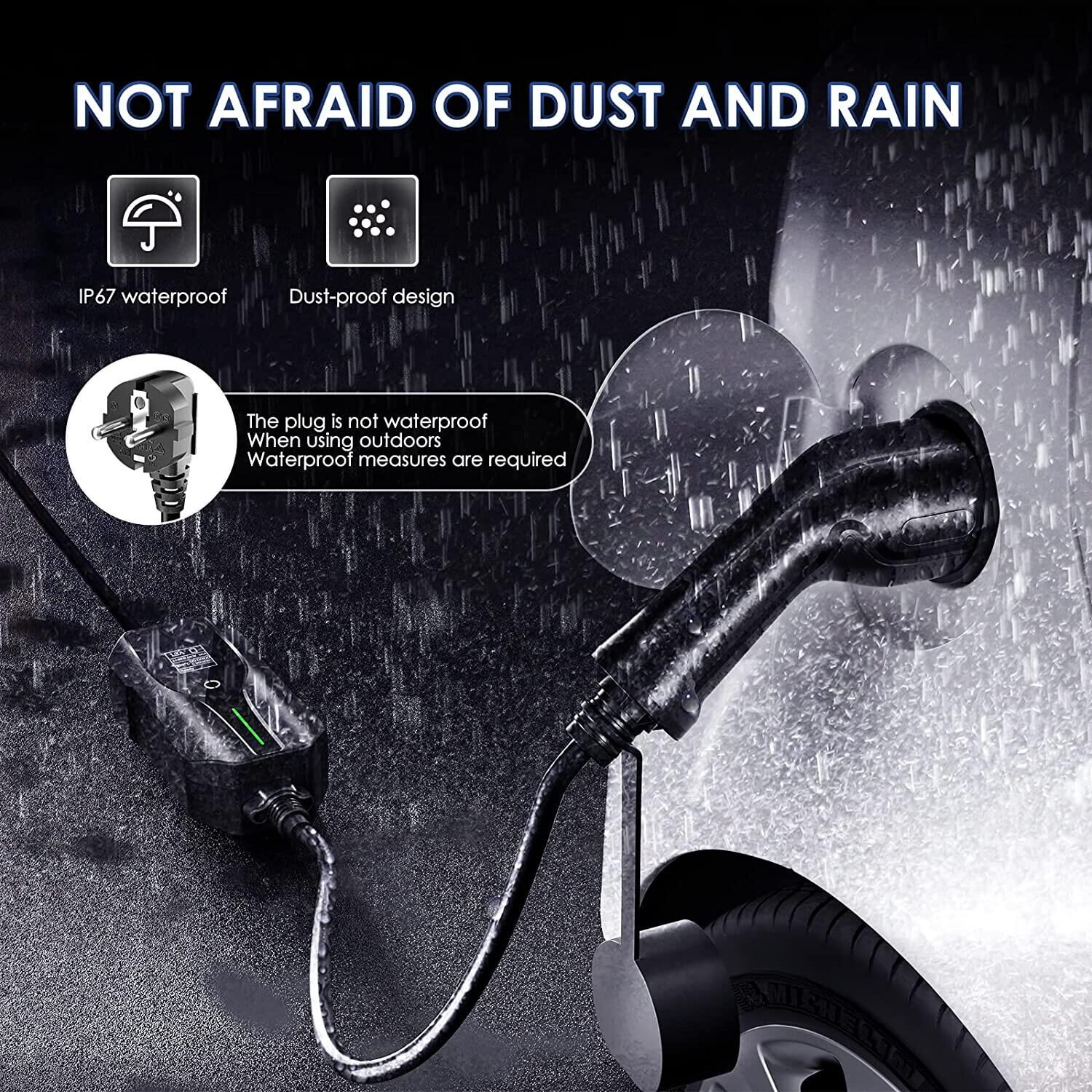

IP Protection |
IP 56 |
|
Max. output power |
7.4kW |
|
Install |
Portable,Plug and Play |
|
Housing Fire Rating |
UL94V-0Rated Input |
|
Withstand Voltage |
2000V |
|
Warranty |
12 months |
|
Function 1 |
Leakage protection |
|
Function 2 |
Over-voltage or Low-voltage protection |
|
Function 3 |
Over-load protection |
|
Function 4 |
Lightning protection |
|
Function 5 |
Over-heat protection |
|

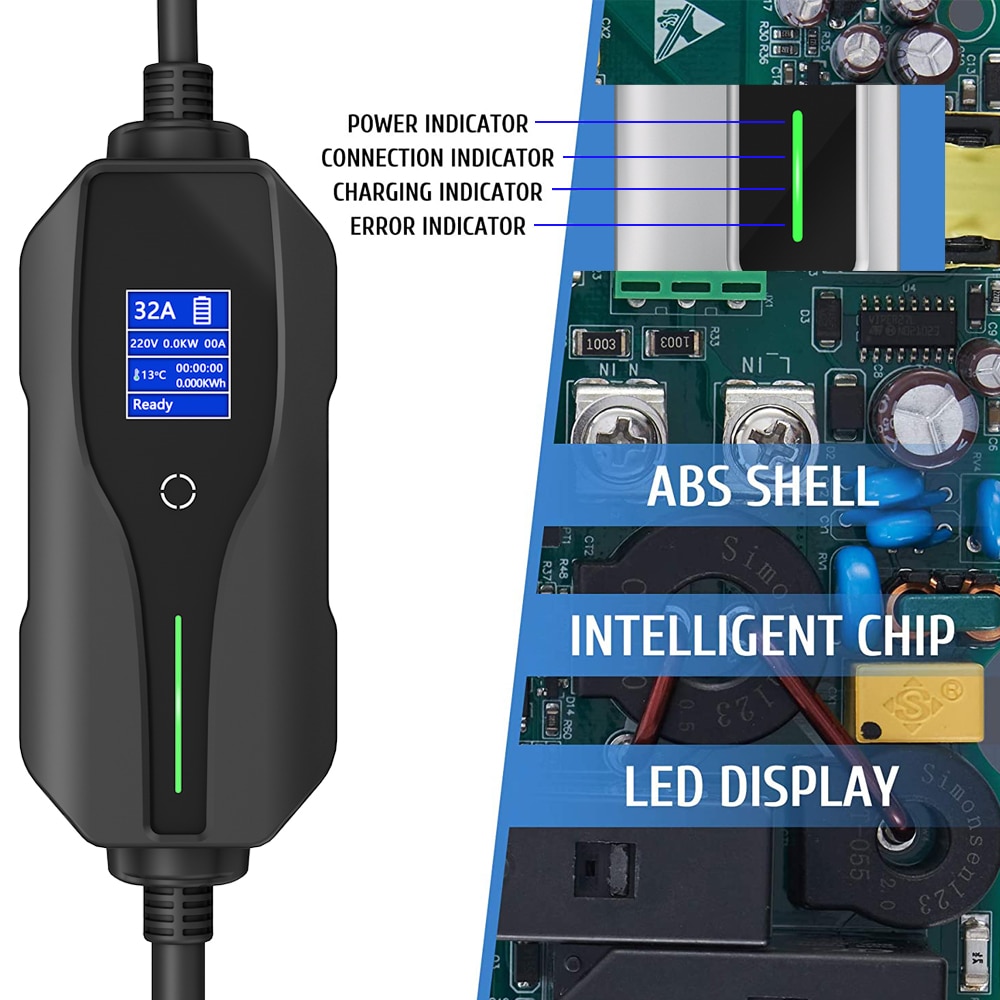

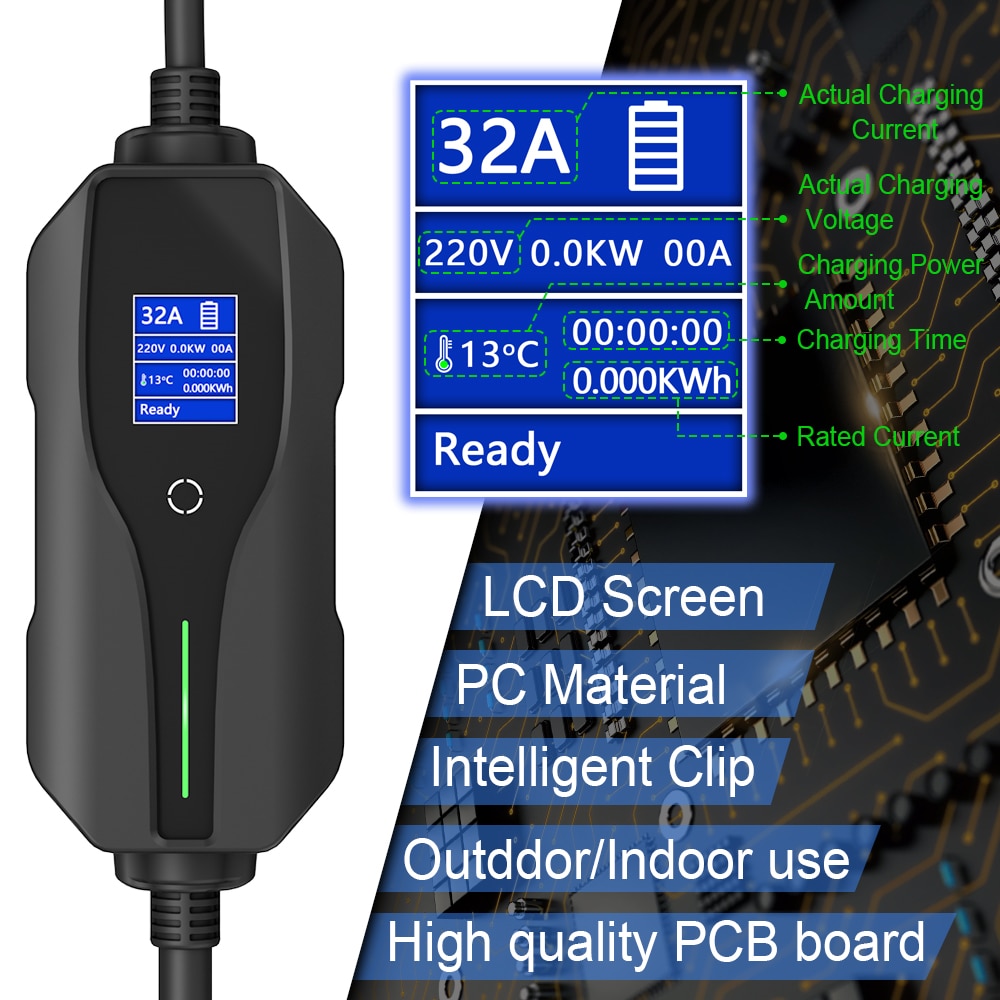

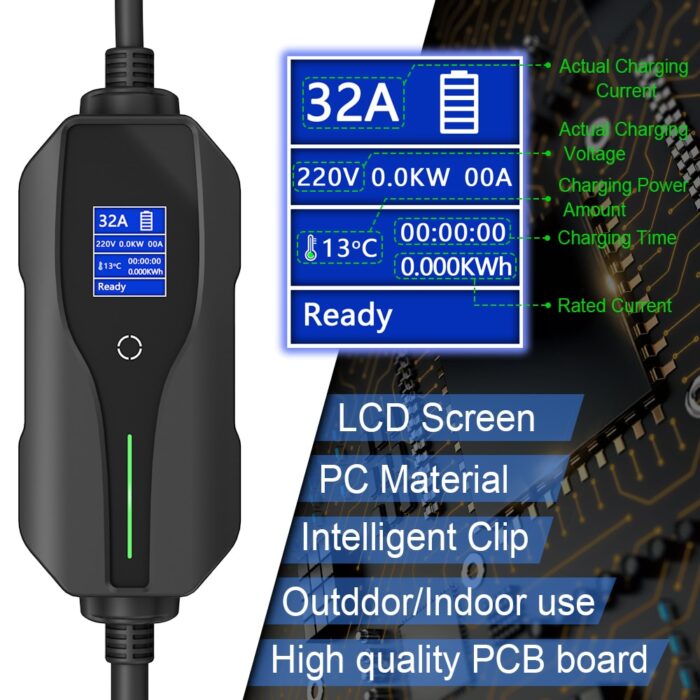

Function 6 |
LCD Screen/ LED light |
|
Contact Pin |
Copper alloy, Silver |
|
Certificate |
CE,UL TUV Approved |
|

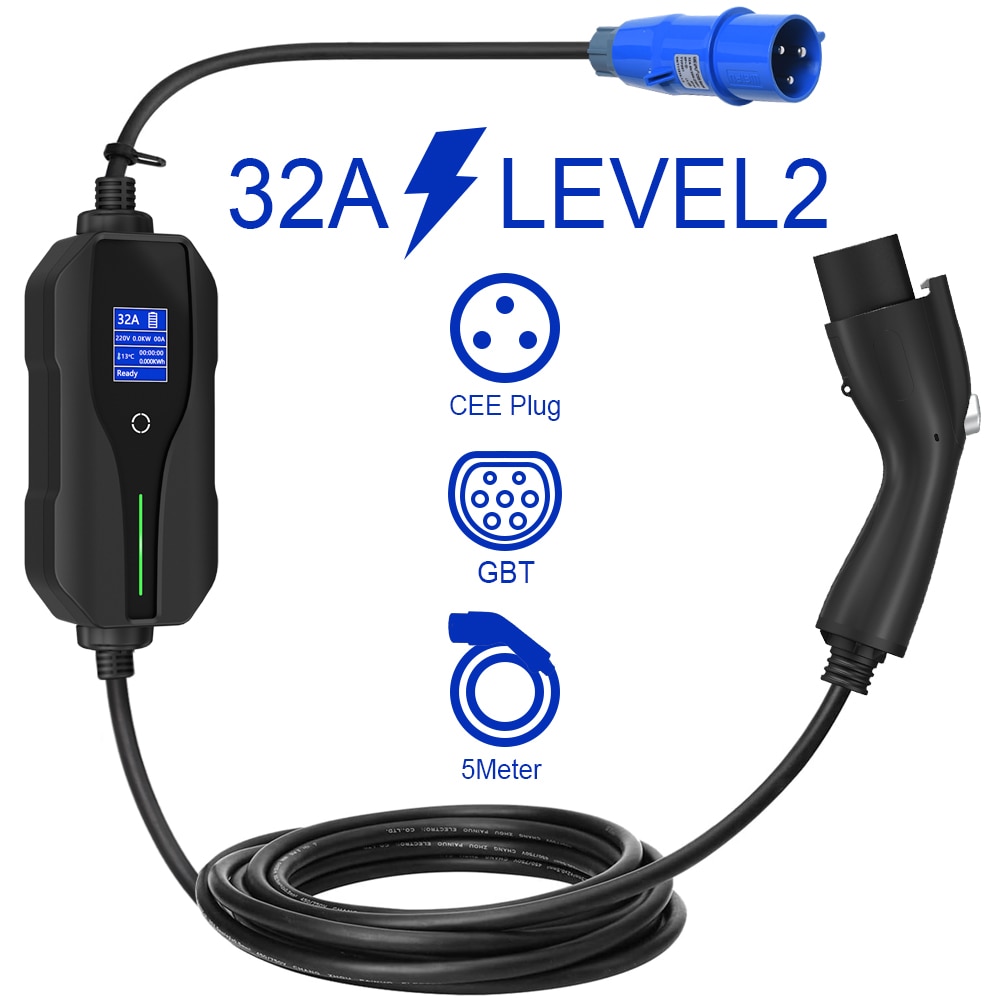

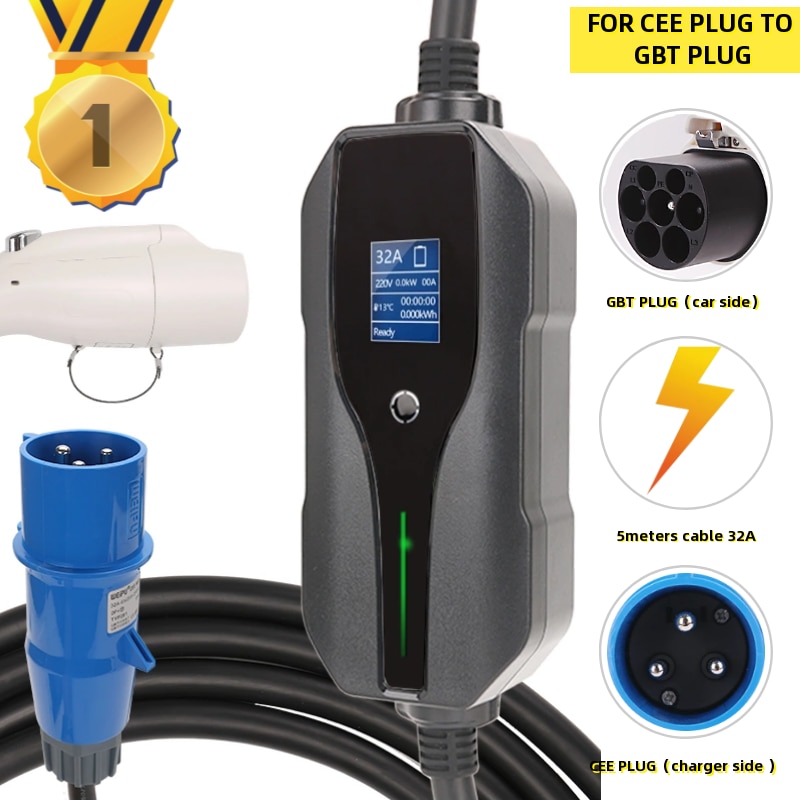

Product Name |

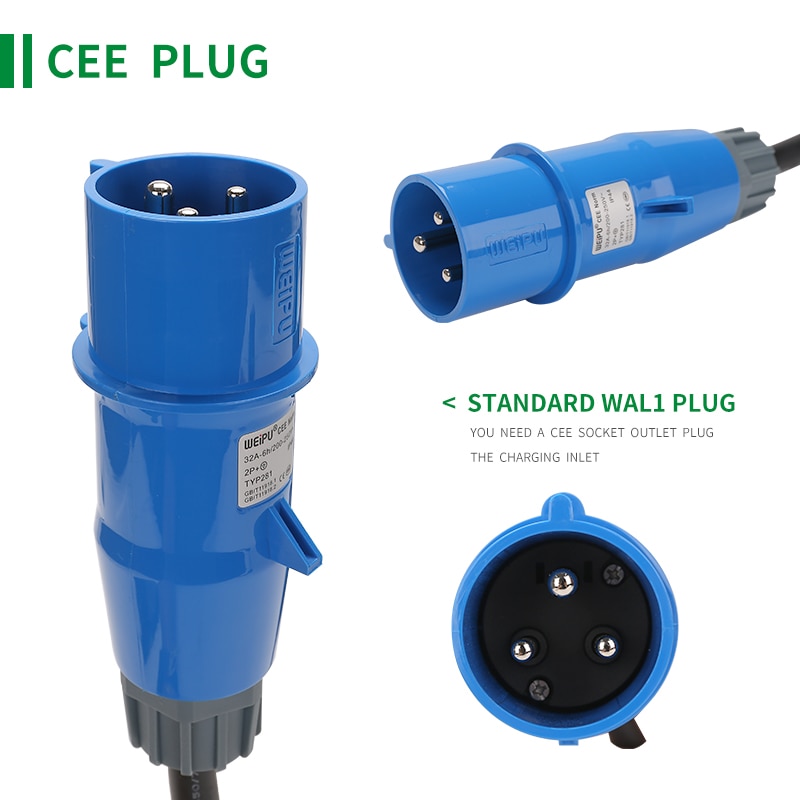

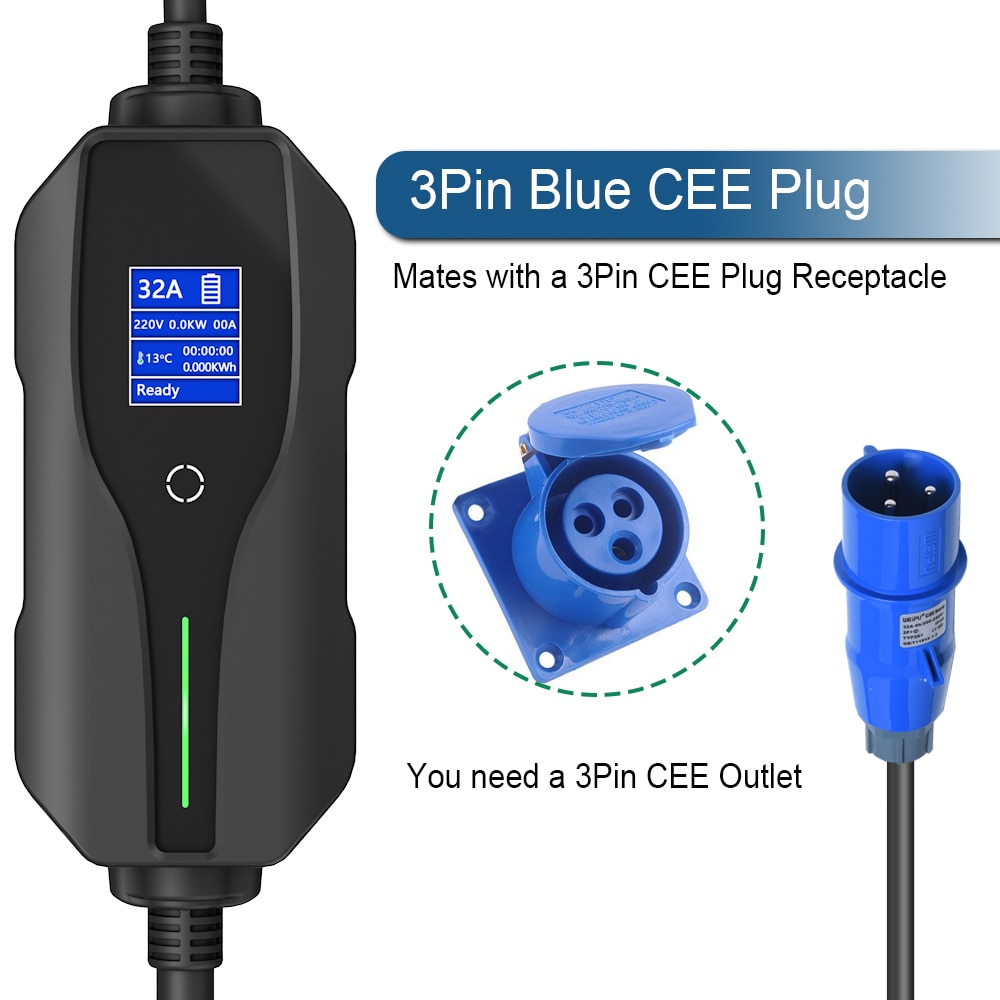

GB/T Portable EV Charging Level 2 32 Amp Electric Vehicle Charger 7.4KW, CEE Plug 220-240V EVSE Car Charger Cable |
|

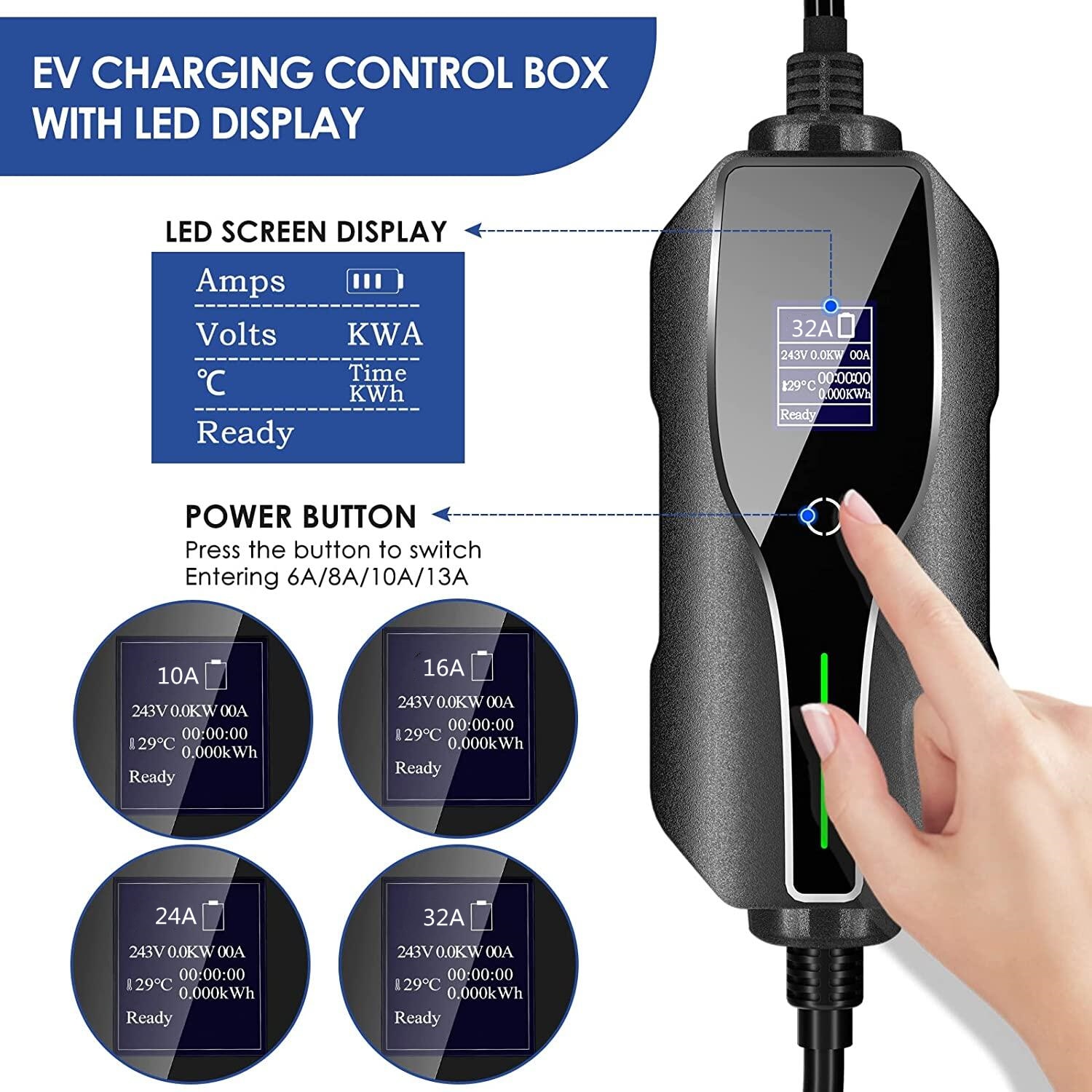

Adjustable Current |
10A,16A,20A,24,32A. |
|

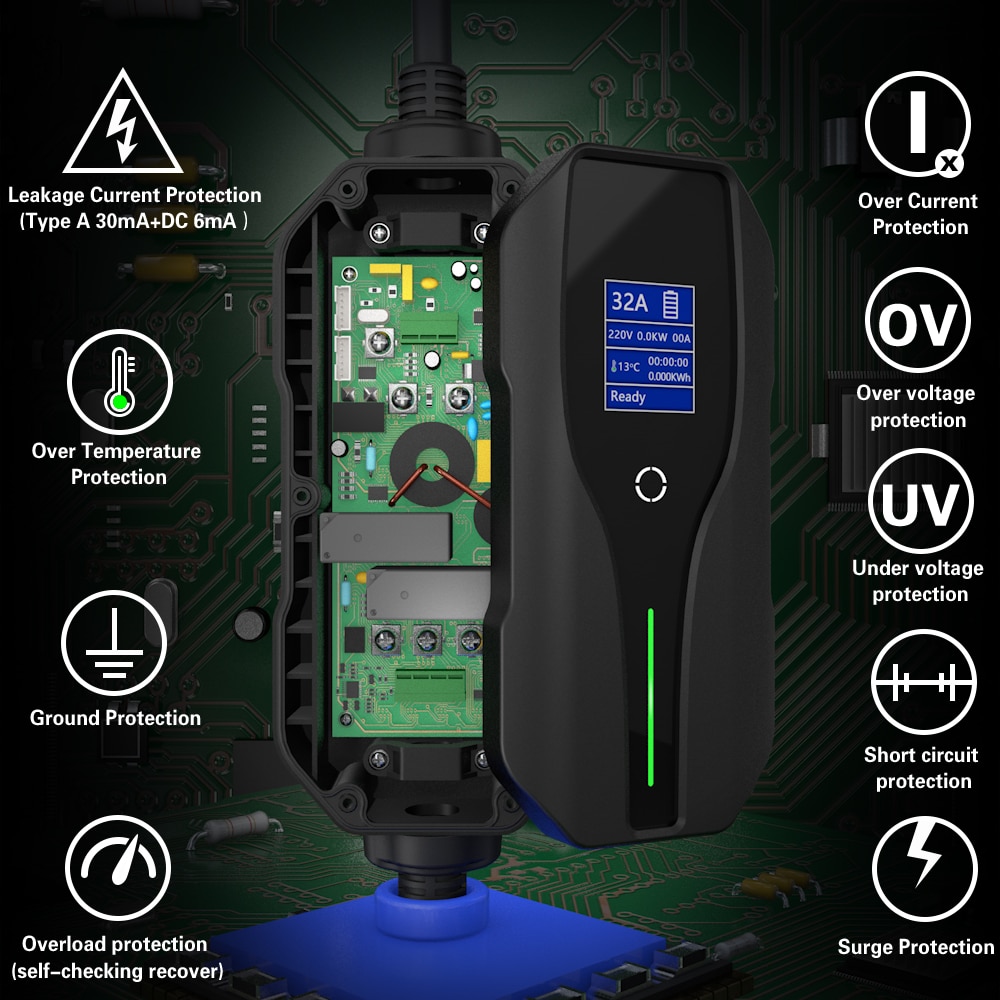

Protection |
1.Short circuit protection 2.Leakage current protection 6.Over temperature protection 8.Lighting protection |
1. Grounding protection
Continuous monitoring of the continuity of the protective grounding conductor during charging
2. Leakage protection
When the leakage current between the fire zero line and the ground is greater than 25 ± 3mA after the product works normally, the output is stopped and cannot be recovered, and it needs to be restarted.
3. Overvoltage protection
When the input voltage is 275 ± 10V, stop the output. At this time, the fault light flashes; When the voltage drops to 254 ± 10V, start with a delay of 10 ± 1s and the fault light goes out. There is no limit to the number of restores.
4. Undervoltage protection
When the input voltage is 165 ± 10V, stop the output, and the fault light flashes; When the voltage rises to 186 ± 10V, start with a delay of 10 ± 1s and the fault light goes out. There is no limit to the number of restores.
5. Overcurrent protection
When the load current is greater than 17a for 3 consecutive minutes, cut off the relay. The above actions will restart automatically after 10 seconds, and will be cut off permanently after 3 cycles. At this time, the fault indication shall flash red quickly. When the load current is greater than 18a for 1s, it will be cut off permanently.
6. Short circuit protection
When the load current is greater than 19A for 1s, it will be cut off permanently and all indicator lights will be off.
7. Dielectric strength
Test voltage 2000vac, test time: 60s, leakage current ≤ 5mA.
8. Insulation resistance
Test voltage 1000V DC, test time: 30s, resistance ≥ 100m Ω.
9. PWM duty cycle
Output current 16A PWM: 26.66% ± 1%
12month quality guarantee and free technical support.
