Main Specifications:
- Charger Type: GBT Charger
- length: 56
- Origin: Mainland China
- Cable Length: 5 meters
- Material: TPU
- Width: 26

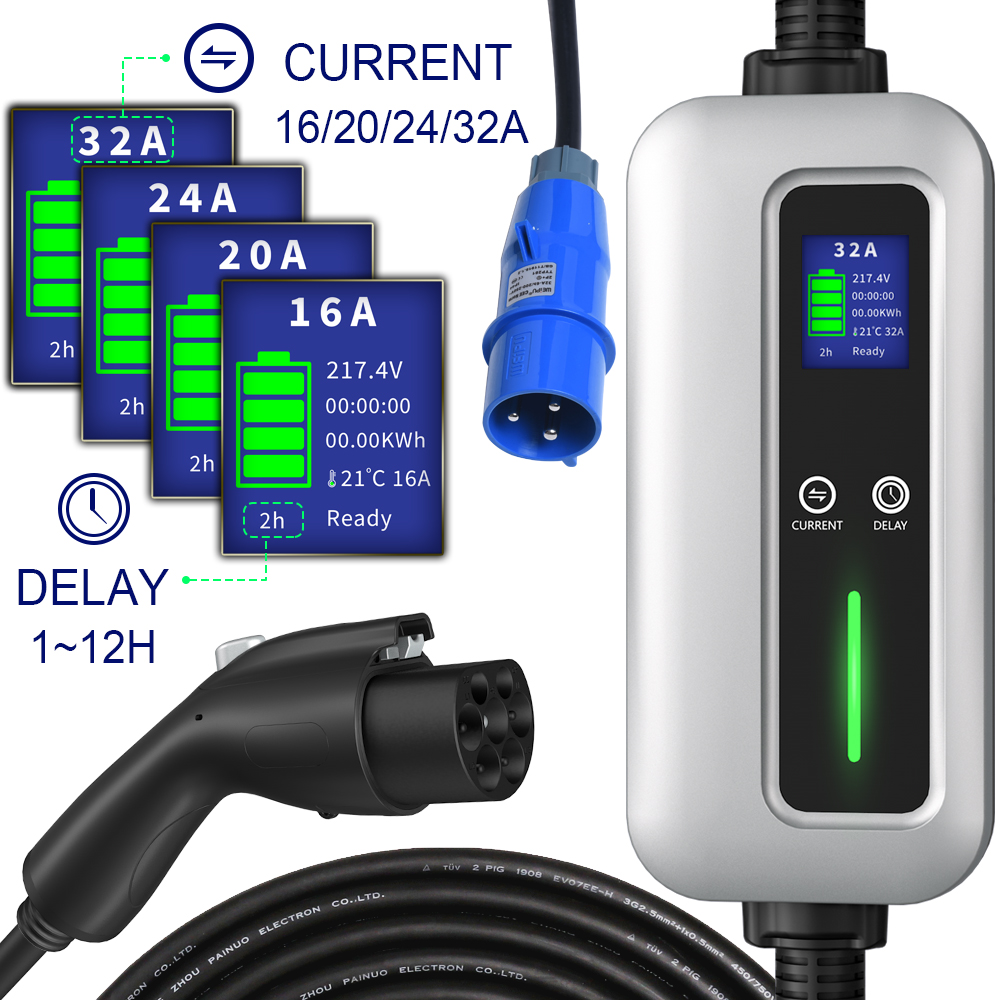

- Current: 10/16/20/24/32A
- Manufacturer Part Number: GBT EV Charger
- Height: 32
- weight: 3.5KG
- Operating Temperature: -25C~+ 55C
- Power: 50/60HZ
- IP Rating: IP67
- Voltage: 110~250V AC
- Special Features: GBT Standard EVSE Home Charger
- Material Type: TPE
- Withstand Voltage: 2000V
- EV Charging Cable: 3×6.0mm2+2×0.5mm2
- Vibration Resistance: Meet JDQ 53.3 Requirements
- Approved: CE/TUV Certificate
- Warranty: 1 year
Electricial Performance
1.12 month warranty
2.Working Current: 3×2.5/6.0mm2+2×0.5mm2 EV Charging Cable
3.Working Voltage: 110-250V AC
4.Auto charge recovery
5.LED Lights for charging status
6.Waterproof: IP67
7.Operating Temperatures: -25° To +55°
8.Storage Temperature: -40° To +80°
9.Certificates: CE TUV
10.Charge from your home power point
11.Electrical approval for EU, CE TUV
12.Guaranteed to be fully compatible with ALL GBT electric charging
Notice:16A Adaption: EU-Schuko-Stecker.32A Adaption:Blue CEE Plug.If you need other types of plugs, please contact support.

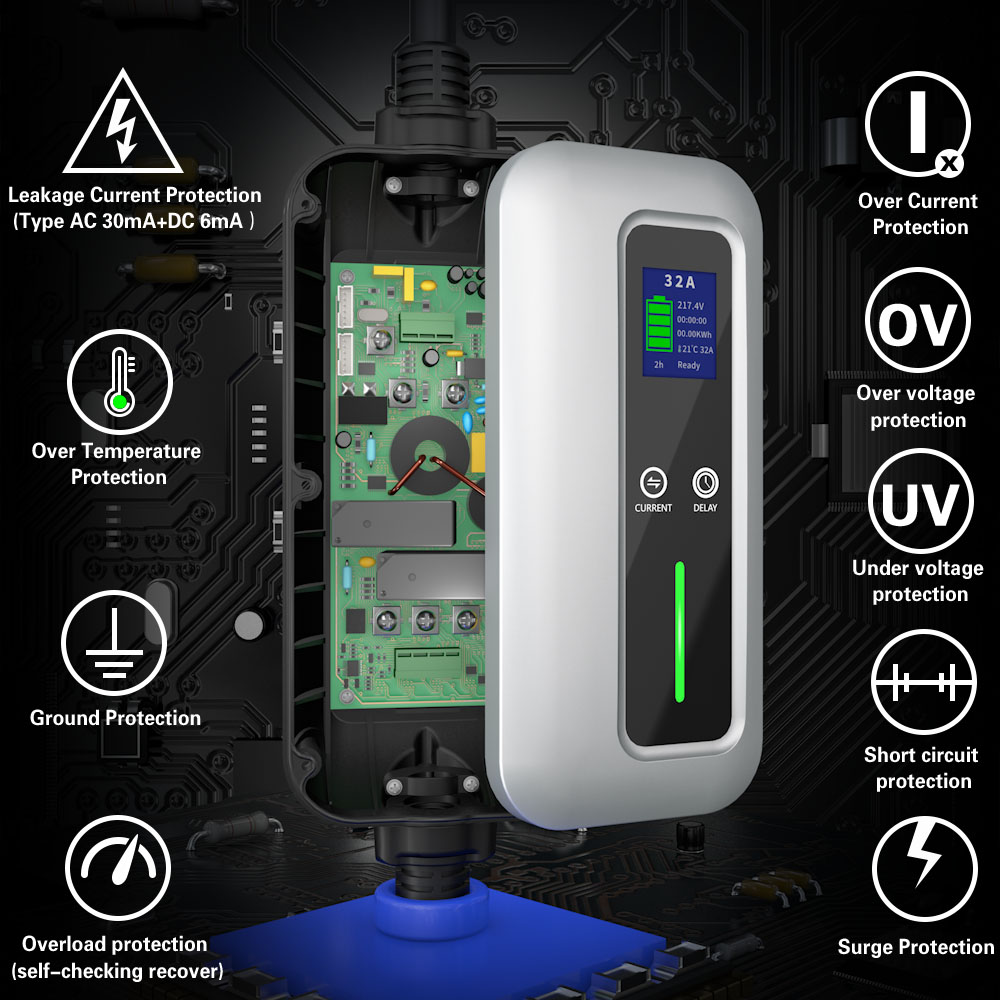

Safety protection:
1.Over and under frequency protection
2.Leakage Current Protection (restart recover)
3.Overload protection (self-checking recover)
4.Over voltage and under-voltage protection
5. Over Current Protection
6. Over Temperature Protection
7. Ground Protection and Short circuit protection
8. Lighting Protection

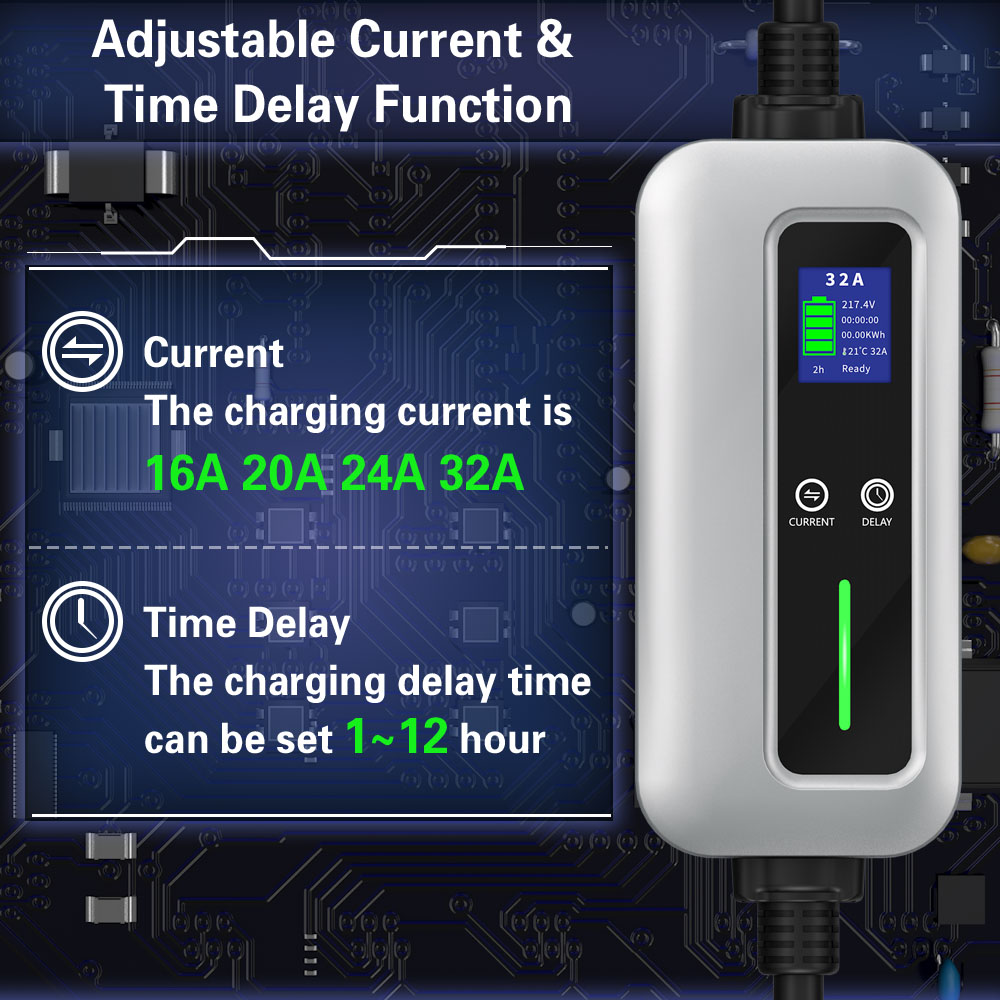

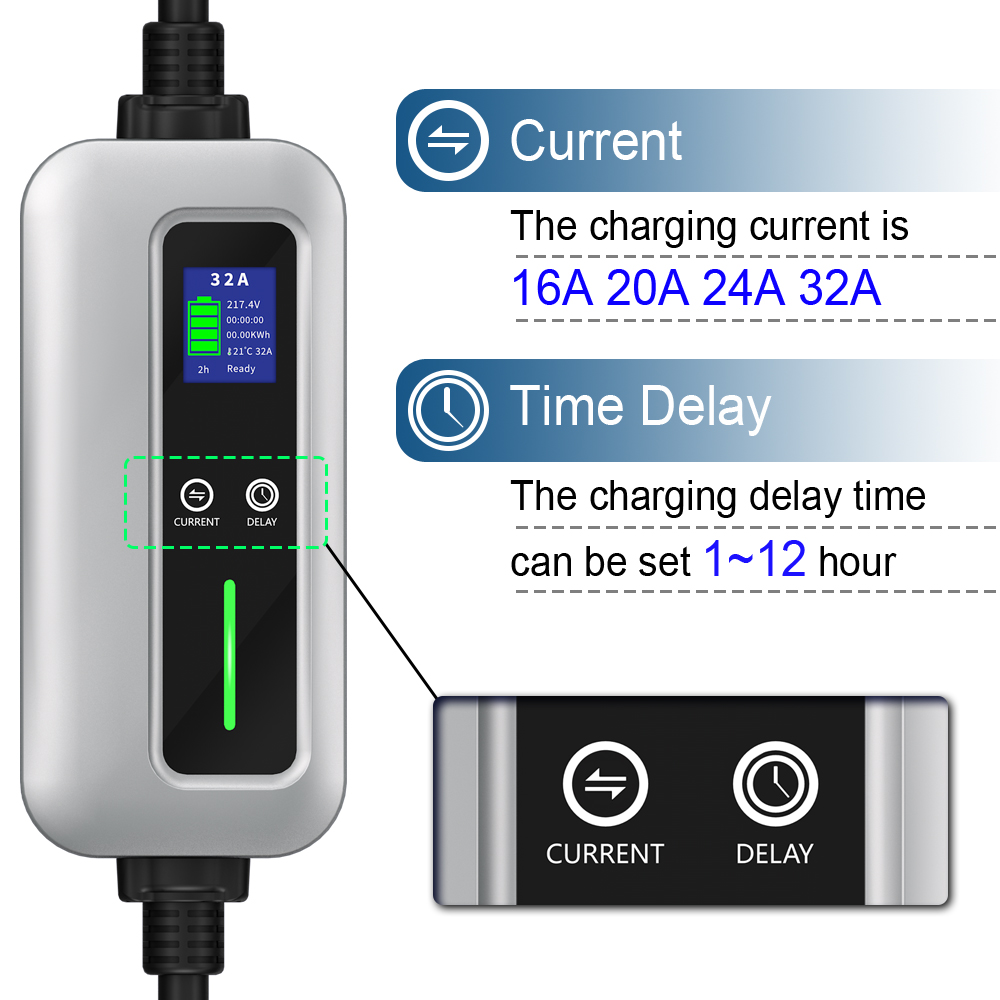

9. Delayed charging: This product is unique! You can adjust the time you want to start charging through the buttons on the control box. For example, if you get home at 2pm, if you don’t want to charge your car during the day because of the high temperature and high electricity bills. You can adjust the charging time to start charging after 1-12 hours. If you adjust to 6 hours then it will start charging at 8pm!
