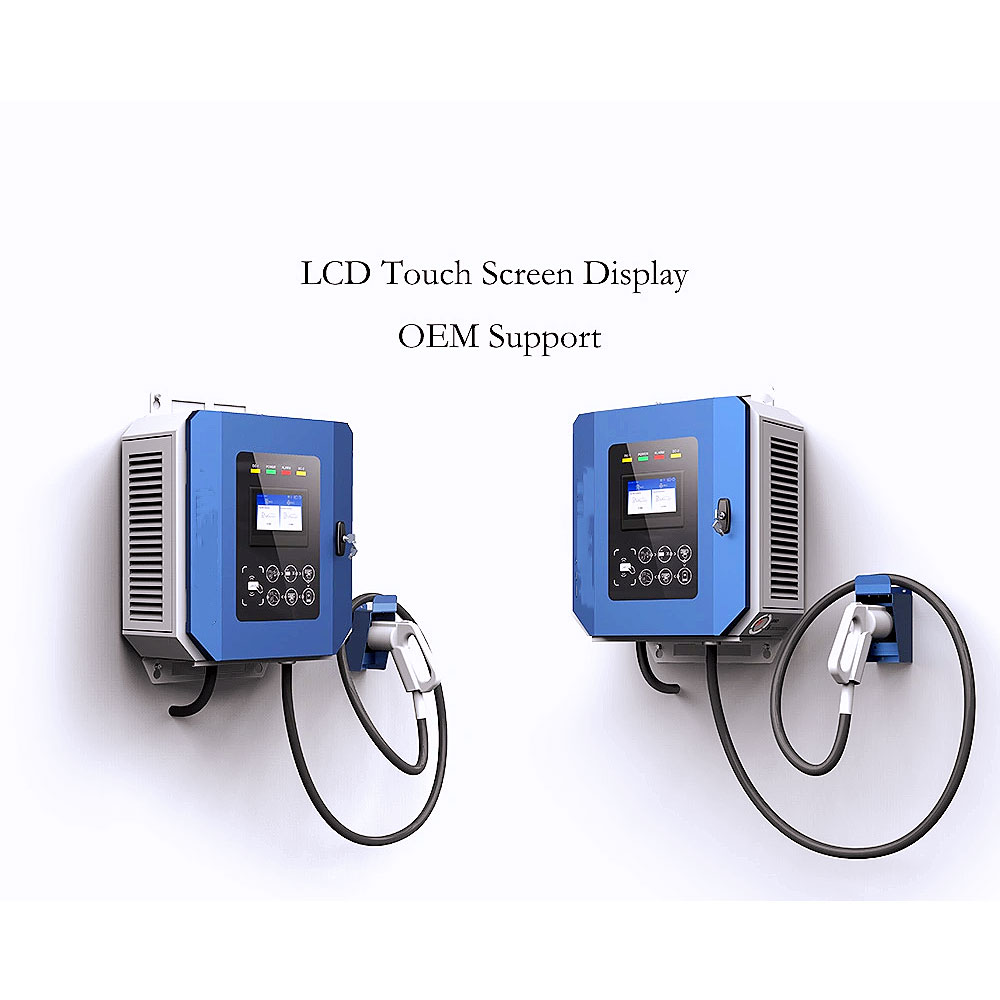

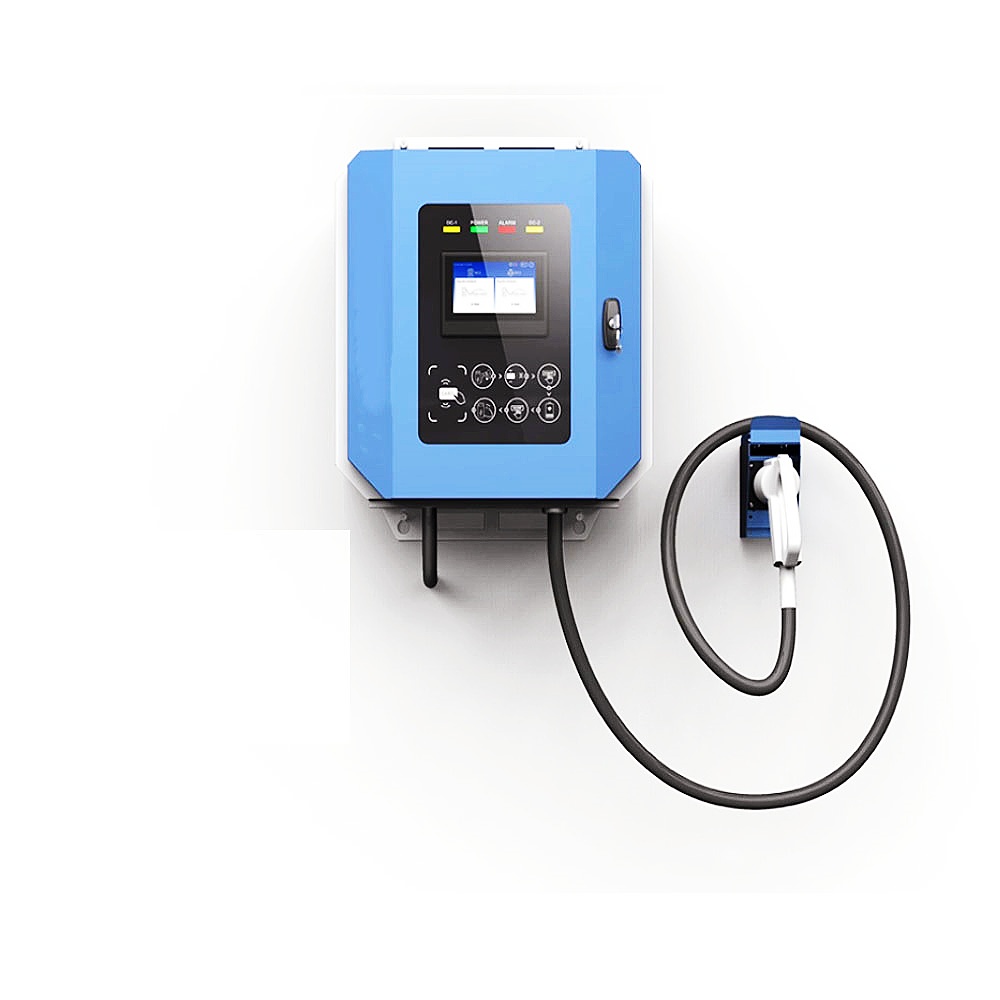

30kW DC Fast Charging Wallbox: IP54 Rated, EMC Class B, Ocpp 1.6j Compliant - Image 1
30kW DC Fast Charging Wallbox: IP54 Rated, EMC Class B, Ocpp 1.6j Compliant - Image 2
30kW DC Fast Charging Wallbox: IP54 Rated, EMC Class B, Ocpp 1.6j Compliant
30kW DC Fast Charging Wallbox: IP54 Rated, EMC Class B, Ocpp 1.6j Compliant - Image 2

30kW DC Fast Charging Wallbox: IP54 Rated, EMC Class B, Ocpp 1.6j Compliant

$1,965.00

Offer Customized Product Features.

The 30kW DC All-in-One Charger is suitable for a wide range of applications, including:

  • Dedicated urban charging stations (buses, taxis, official vehicles, sanitation vehicles, logistics vehicles, etc.)
  • Public urban charging stations (private cars, commuter vehicles, buses)
  • Parking lots in residential areas, shopping malls, and power distribution outlets
  • Intercity highway charging stations

This charger is particularly well-suited for quick deployment in situations where space is limited.



Add to compare
Add to wishlist
SKU: MP2025S04 Category:
Description

Key features of the 30kW DC All-in-One Charger:

  • High power output: The charger can deliver up to 30kW of power, which can fully charge an electric vehicle in as little as 30 minutes.
  • Compact design: The charger is small and lightweight, making it easy to install in tight spaces.
  • Easy to use: The charger is simple to operate, with a user-friendly interface.
  • Durable construction: The charger is built to withstand the elements, making it suitable for outdoor use.

If you are looking for a fast, reliable, and easy-to-use DC charger, the 30kW DC All-in-One Charger is a great option.

Spec Description
System Power  30KW
Output Voltage DC 150V-1000V
Output Current 100A
Input Voltage 3 Phase + N + PE, 260-530VAC
Input Current Max 45A
Input Frequency 45/65Hz
Display 7 inch high brightness color touch screen
Charging Mode Auto Full, Constant Power, Constant Current, Time Setting, Appointment Mode
Charging Method Plug and Play, RFID Card Swiping, Scan Code Charging, Password Charging (Optional)
Payment Method Swipe Card Payment, Scan Code Payment
Networking Mode WIFI, Bluetooth, Ethernet, 4G (Optional)
Voltage Regulation Accuracy <±0.5%
Current Regulation Accuracy <±1%
Harmonic Content ≤5% (Above 50% Load)
Power Factor ≥0.99 (Above 50% Load)
Full Load Efficiency ≥95% (Rated Input and Output)
Ripple Coefficient <±0.5%
Current Limiting Protection Value ≥110%
Safety Standards GB/T20234, GB/T18487, GB/T27930, NB/T33008, NB/T33002
Protection Functions Overvoltage Protection, Undervoltage Protection, Overload Protection, Short Circuit Protection, Grounding Protection, Overtemperature Protection, Low Temperature Protection, Lightning Protection, Emergency Stop Protection, Leakage Protection
Protection Level IP55
Cooling Method Air Cooled
Operating Temperature -40°C~+75°C
Working Humidity 0%~95% Non-condensing
Altitude <2000 meters
Noise Control <60dB
MTBF 100,000 hours
Installation Method Wall-mounted
Dimensions 470mm x 700mm x 285mm
Weight 50kg
