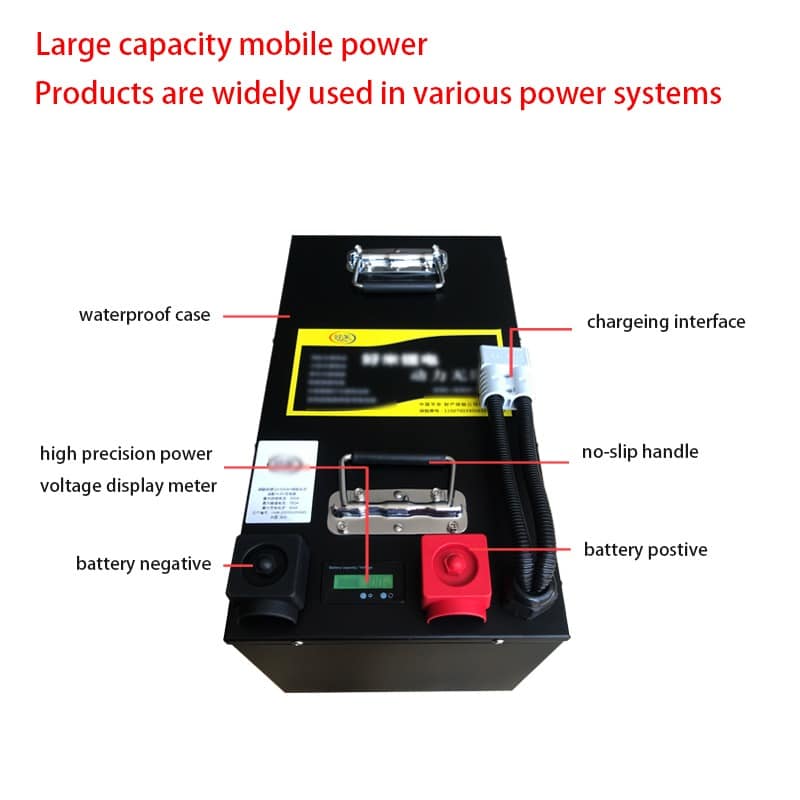

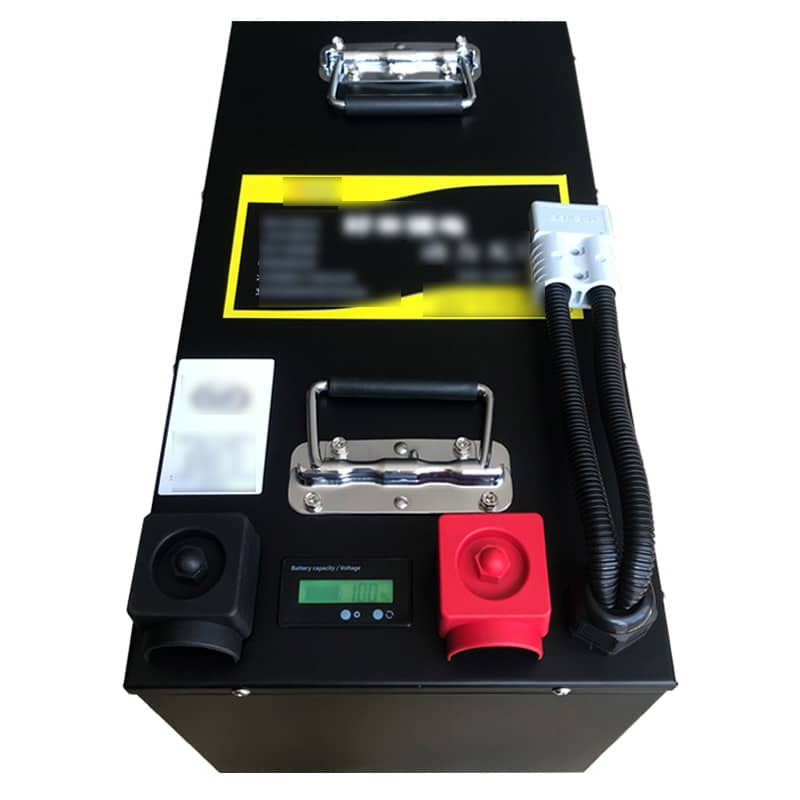

| Product | Â Lifepo4Â battery |
| MAIN PARANETER | |
| Rated Capacity | 80Ah |
| Nominal Voltage | Â 24V |
| Max Charge Voltage | Â 29.2V |
| Discharge Cut Off Voltage | Â 20V |
| Charging Current | 20A |
| Continuous Discharging Current | 80/100/150A |
| Peak discharge current | 160/200/300A |
| Cycle Life | Â 2000 times (DOD 80%) |
| MECHANICAL SPECIFICATIONS | |

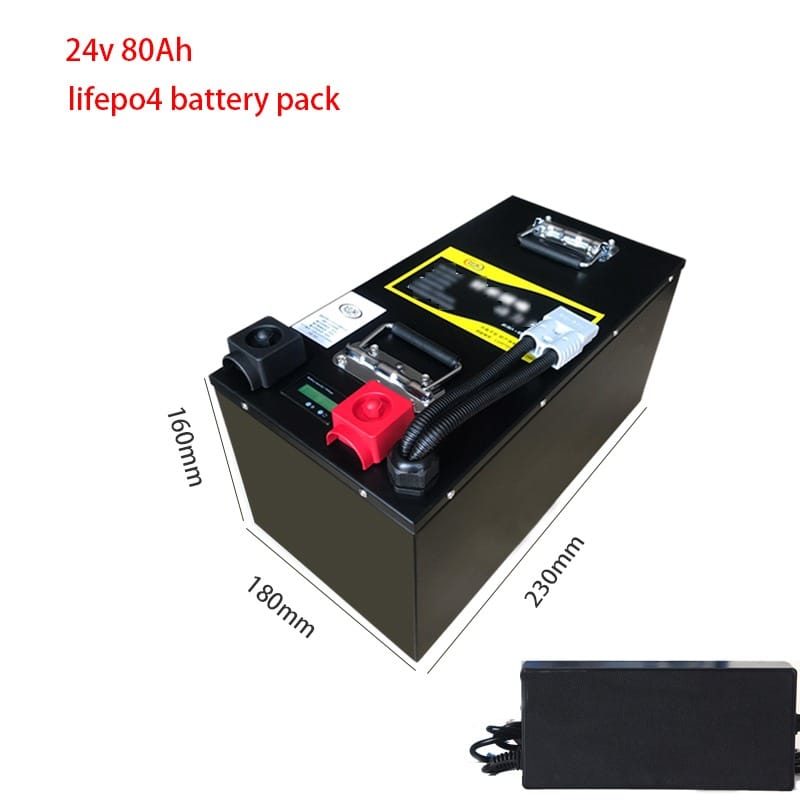

| Dimensions (L*W*H) | Â 230*180*160mm |
| Weight | about 12Kg |
| OTHERS | |
| Operating Temperature |  Charging: 0 ~ 45℃/Discharging:-20 ~ 60℃ |
| Storage Temperature |  -10 ~ 45℃ |
| Humidity | Â 5% to 95% relative humidity |
| Warranty | Â One year |
| Delivery period | Â 7-20 days, depending on stock and quantity. |
| FEATURES | |
| Â Main protection function Overcharge, over discharge, over current, short circuit, etc. | |
Note:
BMS determines the size of the discharge current, such as with 30A BMS, which means a continuous discharge current of 30A.
Application:
Engine starting battery, electric bicycle/motorcycle/scoo5ter, golf trolley/carts, power tools…
Solar and wind power system, RV, caravan…
Back-up system and UPS…
Torch LED light emergency light.
Safety Precaution:
1.Do not throw battery into water or make it wet
2.Keep the battery away from heat source
3.Do not throw the battery into fire or heat the battery
4.Forbid to hammer to trample the battery
5.Forbid disassembling the battery in anyway
Package includes:
1pcs 24V 80AH lifepo4 battery, with BMS.
1pcs 29.2V 10A charger
