Feature | Specification |
---|---|
Origin | Mainland China |
21 | 22 |
Charger Type | Portable Charger |
Plug Type | Type 2 |
Socket | 3pin CEE plug |
Special Features | EU Standard EVSE Home Charger |
Material Type | TPE |
Cord Length | 5 meters (other lengths available from 2-6m, contact seller) |
Item Dimensions (L x W x H) | 56 cm x 32 cm x 36 cm |
Item Weight | 3 kg |

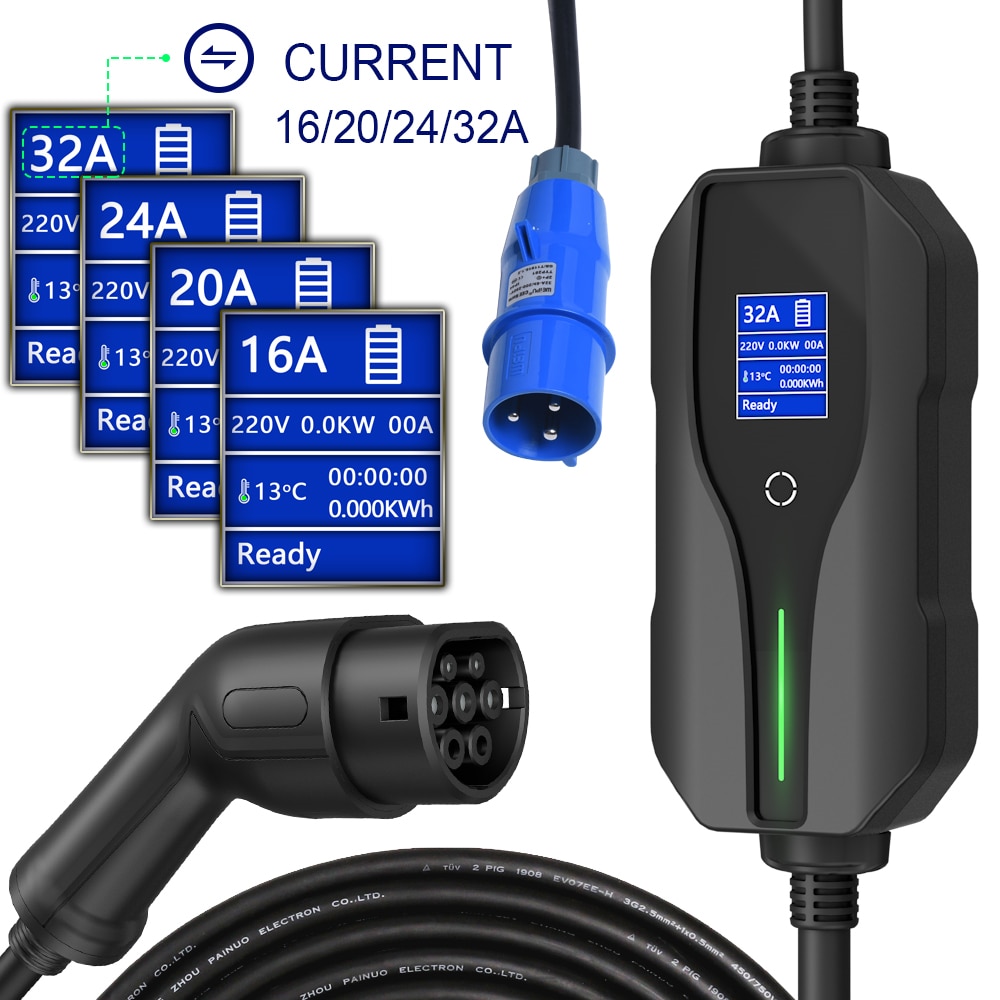

Input Current | Adjustable, 16A or 32A |
AC Power Supply | Single phase |
Voltage | 110-220V |
Working Voltage | 110-240V AC |
Withstand Voltage | 2000V |
Working Temperature | -25°C to +55°C |
Storage Temperature | -40°C to +80°C |
EV Charging Cable | 3×2.5mm² + 2×0.5mm² |
Warranty | 1 year |
Electrical Performance
Auto Charge Recovery | Yes |

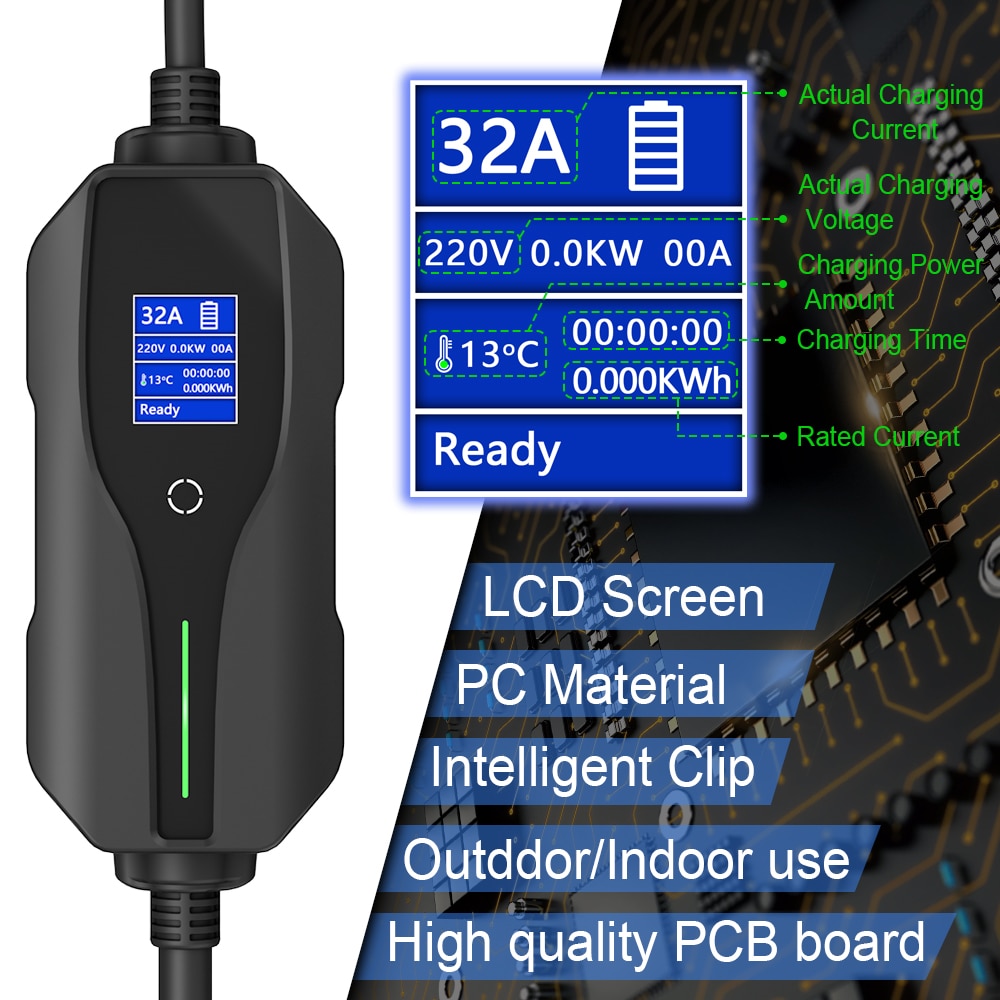

LED Charging Status Lights | Yes |
Waterproof Rating | IP67 |
Operating Temperature | -25°C to +55°C |

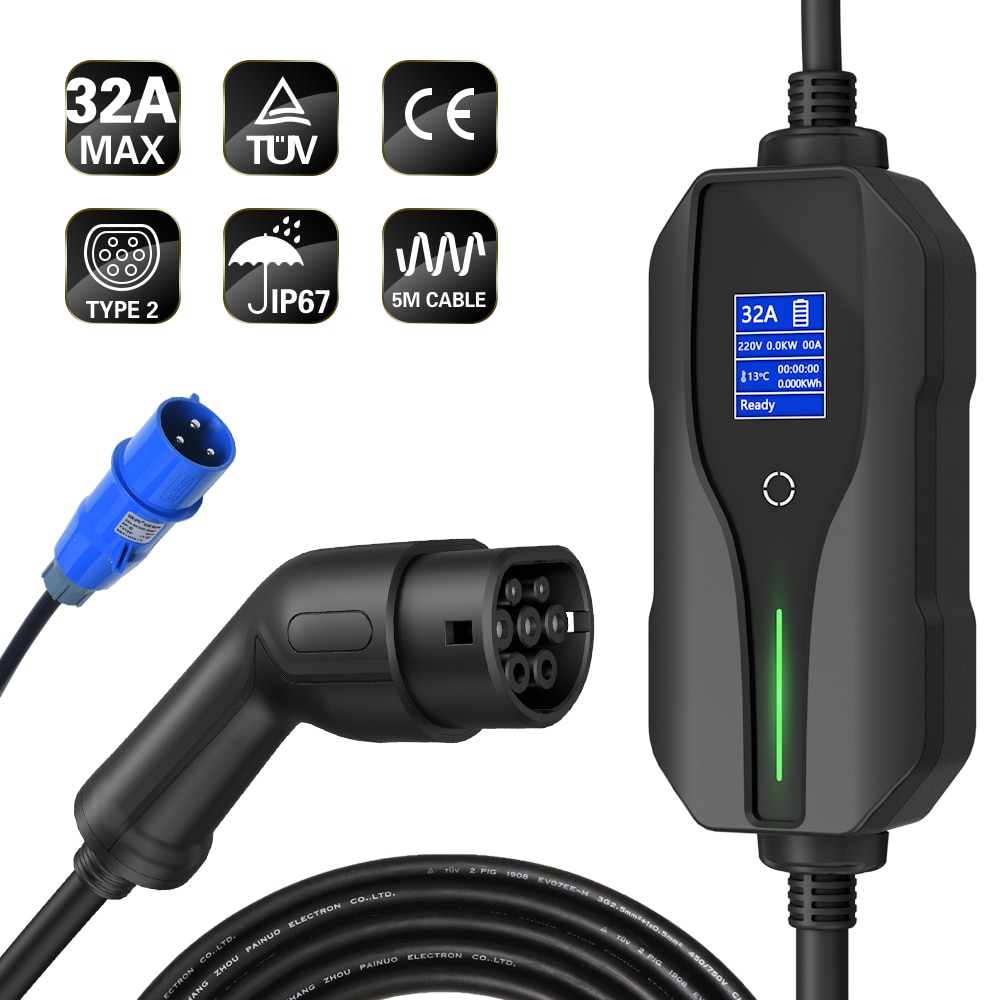

Certificates | CE, TUV |
Home Charging Compatibility | Yes |
Electrical Approvals | EU, CE, TUV |
Type 2 Compatibility | Guaranteed |

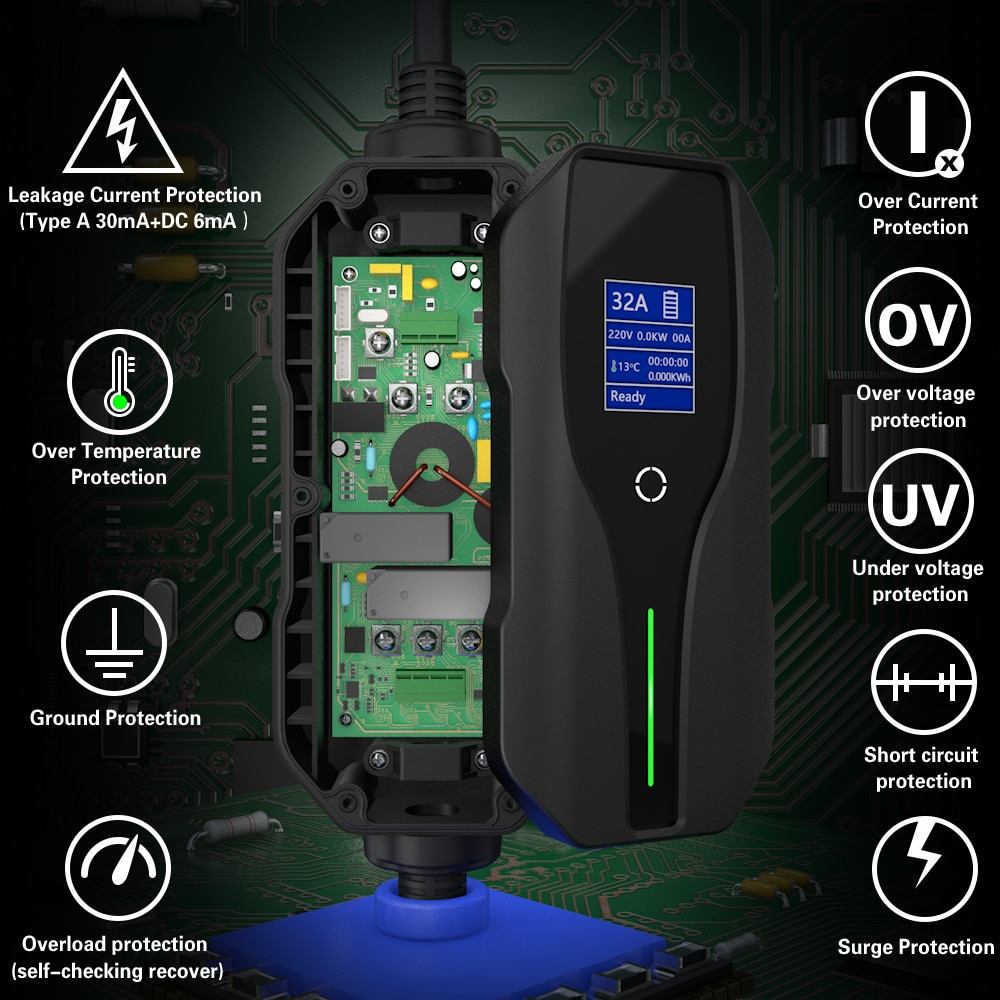

Safety Protections
Over/Under Frequency Protection | Protects against abnormal power grid frequencies. |
Leakage Current Protection | Detects and stops charging in case of leakage current. |
Overload Protection | Protects against excessive current draw. |
Over/Under Voltage Protection | Protects against abnormally high or low voltage. |
Over Current Protection | Protects against excessive current flow. |
Over Temperature Protection | Protects against charger overheating. |
Ground Protection & Short Circuit Protection | Protects against grounding issues and short circuits. |
Lighting Protection | Protects against lightning strikes. |
